Didier Stevens

Tuesday 19 September 2017

Quickpost: Creating A Simple Flow Graph With GNU Radio Companion

Filed under: Hardware,Quickpost — Didier Stevens @ 0:00

If you installed GNU Radio and want to know how to create the Flow Graph I used to test my SDR, follow along:

Start GNU Radio Companion, and create a new WX GUI file:

You will see 2 blocks, Options and Variable:

Notice that the ID is “top_block” (that’s the default), and that the Generate Options is “WX GUI” (QT GUI is the default).

Variable is a block that defines a variable for the sample rate: samp_rate. By default, it’s 32k (32000), but that’s too small.

For my RTL-SDR, I will use 2 MHz (2000000 Hz). Double click the Variable block, change the value and click OK:

Now we will add a block that represents our SDR as a source of data. Go to the right menu and select “RTL-SDR Source” (you can click the search button on the toolbar to search for this block).

Drag this block into the flow graph:

Notice that the title of this block is in red: that’s to indicate that there is an error with this block (it’s not connected). We will fix that soon.

Next select the “WX GUI Waterfall Sink” block:

Drag this block into the flow graph:

Hover with your mouse over the blue port of block “RTL-SDR Source”, the word “out” will appear:

Click on the blue port:

Now hover with your mouse over the blue port of block “WX GUI Waterfall Sink”, the word “in” will appear:

Click on the blue port:

An arrow connects the 2 ports, and the titles turn black (no errors).

The default frequency of block “RTL-SDR Source” is 100 MHz. I will tune this to a local FM radio station at 100.6 MHz. Double click the “RTL-SDR Source” block, and edit the Ch0 Frequency: 100.6e6 is 100600000 or 100.6 MHz (e6 is the exponent notation for 1000000, 6 zeroes).

We can now save the flow graph. A flow graph has to be saved before it can be executed, if it is not saved, GNU Radio Companion will display a save dialog box when you execute the flow graph.

The extension for flow graph files is .grc:

A .grc file is an XML file:

Now we can execute the flow graph by clicking on the Play button:

When everything works fine, you should see output like this:

The green bands represent the signals of broadcast stations, and in the terminal you can see that a top_block.py program was generated and executed, and that GNU Radio is able to connect to the SDR device and get data.

GNU Radio Companion creates the top_block.py program (the name comes from the ID in the Options block), and executes it with GNU Radio:

If GNU Radio is not able to get data from your SDR device, it will generate null values: the waterfall plot will be uniform blue, and the terminal will report errors:

You can stop the Python program from running by clicking the stop button:

If there are errors in your flow graph, you will not be able to click the play button. Click the error button to get more info:



Quickpost info

Monday 18 September 2017

Quickpost: GNU Radio On Windows

Filed under: Hardware,Quickpost — Didier Stevens @ 20:43

I’ve been using GNU Radio & GNU Radio Companion with the GNU Radio Live SDR Environment, but now I’ve switched to GNU Radio on Windows (I’ve seen posts that it’s stable now).

The installation was easy, I downloaded the GNURadio x64 binaries and proceeded with a default install:

Next, install drivers for my HackRF One and RTL-SDR with Zadig.

Zadig can auto-update:

When I plug in my HackRF One, no driver is installed automatically (Windows 10), I use Zadig to install a WinUSB driver:

The same for my RTL-SDR, although the name of the device is “Bulk-In, Interface (Interface 0)”. A driver was automatically installed after connecting it (RTL2832UUSB), but I need WinUSB here too:

If you don’t see your device listed, make sure that all devices are listed:

Now I can use GNU Radio on my Windows machine. I start GNU Radio Companion, and get a one time warning about xterm missing, that I can ignore:

A quick flow graph connecting my RTL-SDR (tuned to a local FM station) to a waterfall plot shows my SDR is working (the terminal output confirms that too):

If GNU Radio is not receiving I/Q data from your SDR, the waterfall plot will be pure blue, and you will see a message attesting to that in the terminal.


Quickpost info

Sunday 17 September 2017

Quickpost: Update: Infinite Control For Bash Bunny

Filed under: Bash Bunny,Hardware,My Software,Quickpost,Update — Didier Stevens @ 16:39

This is an update to my Bash Bunny payload Infinite Control: it sends a CONTROL keypress every 10 seconds. I changed the LED colors, and if you uncomment line 27 the BREAK key will be used (function key 15, as some people suggested).

You can find it on HAK5’s GitHub Bash Bunny repository too.

# Title:         Infinite Control
# Author:        Didier Stevens (https://DidierStevens.com)
# Version:       0.0.2 2017/09/02
# History:       0.0.1 2017/04/08 start
#                0.0.2 2017/09/02 changed LED colors, added BREAK
# Hit the CONTROL key every 10 seconds in an infinite loop,
# while blinking the CYAN LED with every keypress.
# Can be used to prevent a machine from sleeping or auto-locking.
# Some users have suggested to hit F15 (BREAK) in stead of CTRL.
# This can be done by uncommenting line #INFINITE_KEY=BREAK.
# WARNING: Do not type on the machine's keyboard while this script
#          is running, or your keystrokes might become commands,
#          for example CTRL-Q: Quit
# Cyan ..............Hitting CONTROL key
# Yellow Blinking ...Sleeping
# Red Blinking.......Wow! We broke out of the infinite while loop!



# infinite while loop
while true
	sleep 1
	sleep 9

# this code will never be reached


Quickpost info

Saturday 16 September 2017

PyBoard LCD160CR Text Scrolling Window 8

Filed under: Hacking,Hardware — Didier Stevens @ 13:38

I used my PyBoard microcontroller + LCD160CD screen as a name tag at 44CON.

I had to do some research, as I could not find example code to get the text scrolling working. The key to the solution was to set the direction to 2 (-x).

This is the code I put in main.py:

# main.py -- put your code here!

# Didier Stevens 2017/09/13 https://DidierStevens.com

# https://docs.micropython.org/en/latest/pyboard/library/lcd160cr.html
import lcd160cr

# http://micropython.org/resources/LCD160CRv10-refmanual.pdf page 7
def LCDVector(frame_mode, direction, step):
    return frame_mode << 15 | direction << 12 | step

# http://micropython.org/resources/LCD160CRv10-refmanual.pdf page 8
def LCDFont(pixel_replication, soft_scroll_flag, transparency_flag, font_number, horizontal_bold_offst, vertical_bold_offst):
    return pixel_replication << 8 | soft_scroll_flag << 7 | transparency_flag << 6 | font_number << 4 | horizontal_bold_offst << 2 | vertical_bold_offst

lcd = lcd160cr.LCD160CR('X')
lcd.set_scroll_buf('Didier NVISO.BE ')
lcd.set_scroll_win(8, 0, 0, 128, 128, LCDVector(0, 2, 4), LCDFont(7, 0, 0, 3, 0, 0), 0x0000, 0xFFFF)

Saturday 9 September 2017

Quickpost: Keyboard Setting For pfSense

Filed under: Quickpost — Didier Stevens @ 0:00

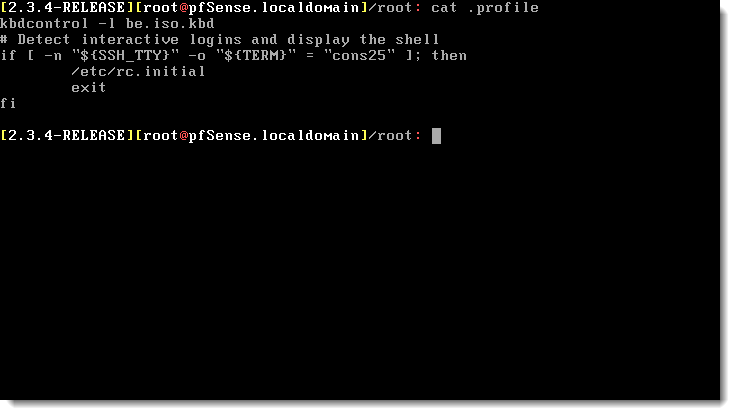

Here’s how I configured a belgian keyboard on pfSense: I added the command “kbdcontrol -l be.iso.kbd” to my profile (.profile):

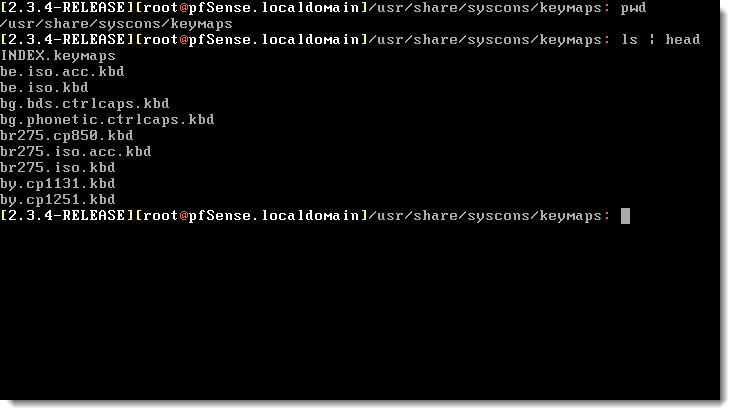

Mappings for keyboards can be found in folder /usr/share/syscons/keymaps:



Quickpost info

Friday 8 September 2017

Quickpost: DllDemo

Filed under: Quickpost — Didier Stevens @ 0:00

This is a quick demo on loading DLLs with standard Windows tools.

I wrote a DLL for this demo:

#include <windows.h>

extern "C" __declspec(dllexport) void ExportedFunction(void)
	MessageBox(NULL, "Hello from ExportedFunction, DemoDll!", "DemoDll", MB_OK);;

BOOL WINAPI DllMain(HINSTANCE hinstDLL, DWORD fdwReason, LPVOID lpReserved)
	switch (fdwReason)
		MessageBox(NULL, "Hello from DllMain, DemoDll!", "DemoDll", MB_OK);;




	return TRUE;

A message box is displayed when DllMain (the entrypoint for DLLs) is called when the DLL is loaded into a process, and another message box is displayed when function ExportedFunction is executed.

Function ExportedFunction is prefixed by __declspec(dllexport) to export the function, and with extern “C” to prevent C++ name mangling.

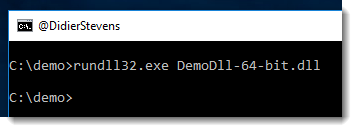

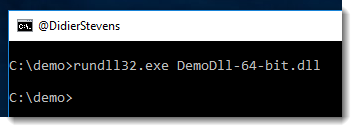

One method to load this DLL into a process, is to use the rundll32 command (since I’m doing this demo on Windows 10, I’m using the 64-bit version of my DLL):

No message box is displayed: the DLL was not loaded. The reason is that rundll32 requires you to specify an exported function that it needs to call.

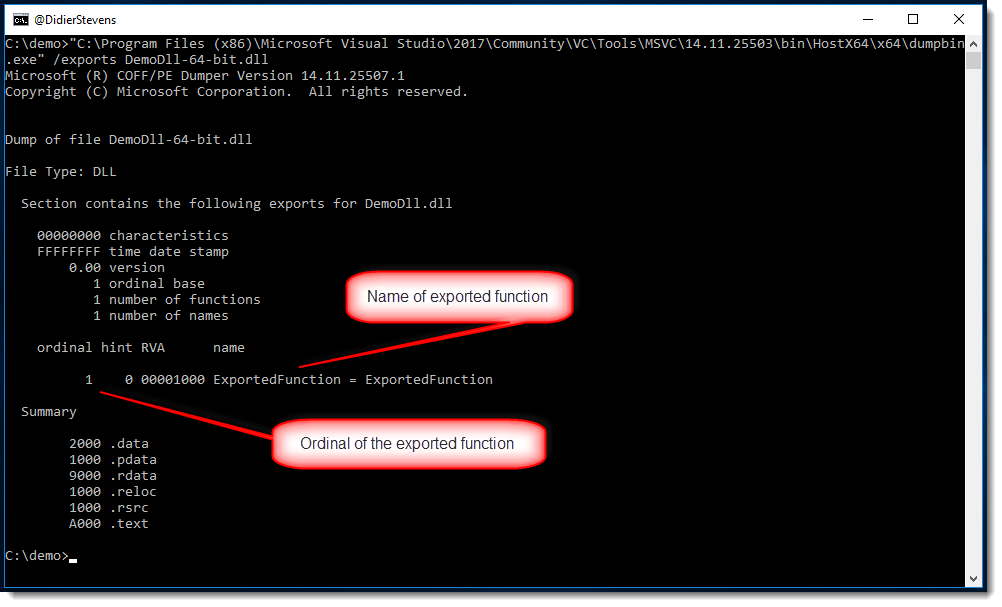

With dumpbin, we can get an overview of the exported functions of a DLL:

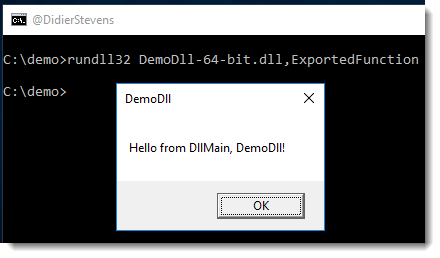

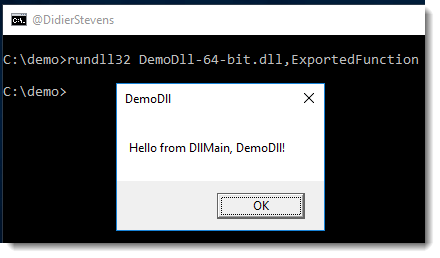

We can specify the name of the exported function we want to call like this:

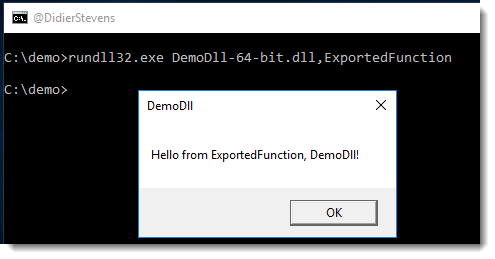

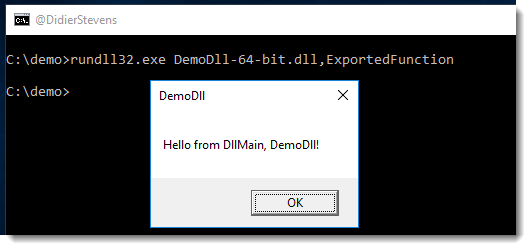

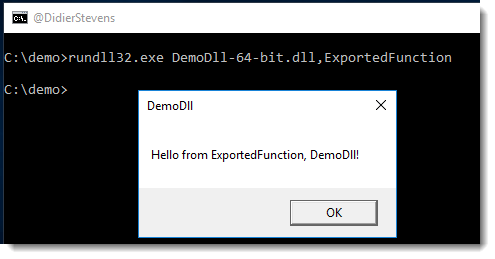

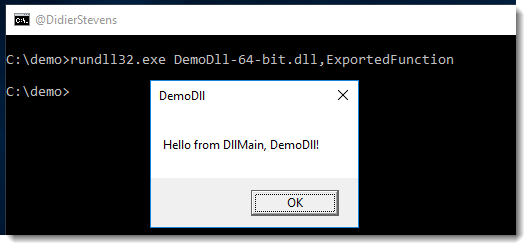

We can see the message box from the entrypoint, and then the message box from the exported function we called:

This means that the DLL was loaded into the rundll32 process, and that the called function was executed.

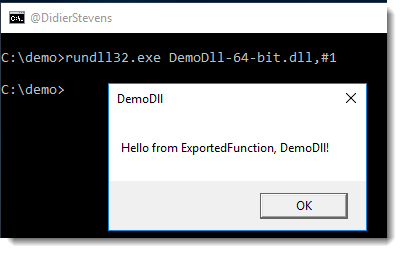

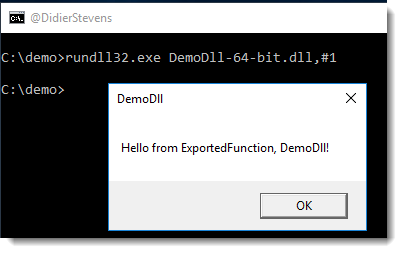

Exported functions have an ordinal too (a number to identify exported functions), and that number can be used too to specify the function, like this:

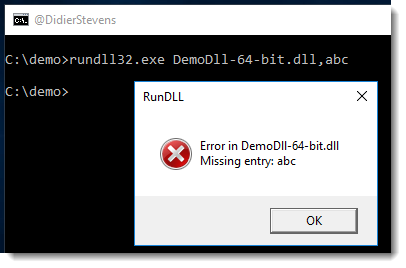

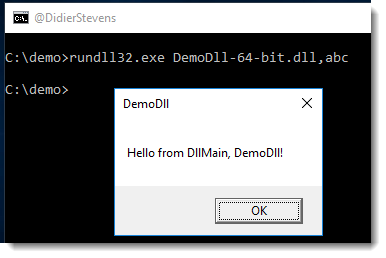

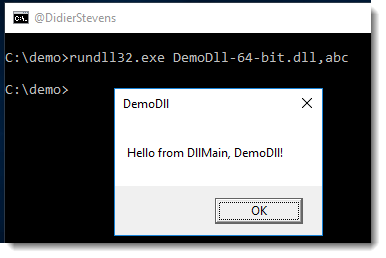

If we use rundll32 with a function that is not exported by the DLL, then the DLL is loaded:

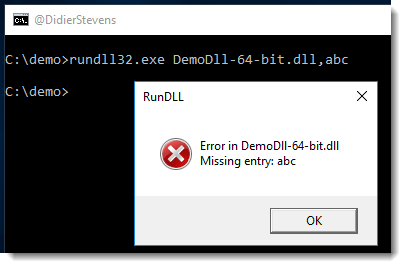

rundll32 will display an error because it could not find the exported function:

But as we could see, the DLL got loaded.

Despite the name would make you think (rundll32), the version of rundll32 I used is a 64-bit executable, and that’s why I used a 64-bit DLL.

32-bit DLLs have to be loaded into 32-bit processses, and 64-bit DLLs into 64-bit processes.

However, rundll32 will start a “proxy” process if you mix bitness, so that DLLs will always be loaded.

Let’s look at the 4 possible combinations:

64-bit rundll32 with 32-bit DLL:

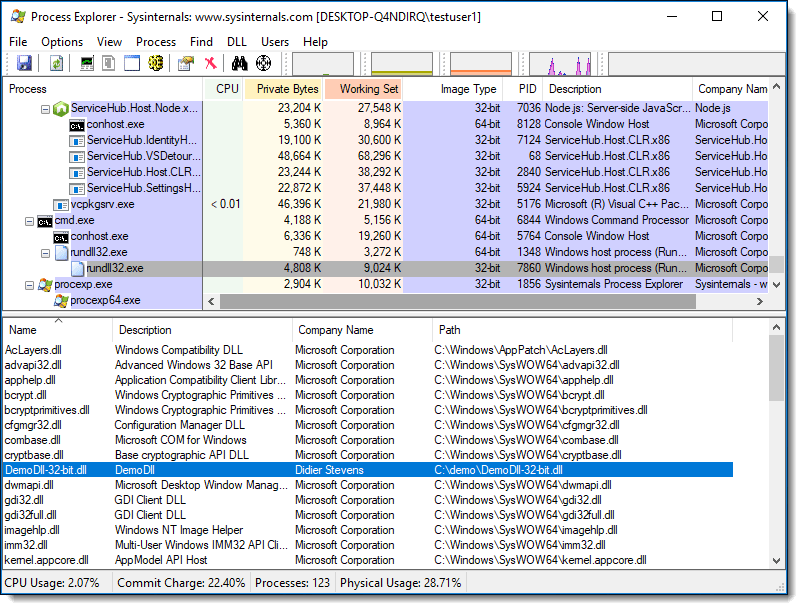

Taking a look with process explorer, we see that 64-bit rundll32 started 32-bit rundll32 to load the 32-bit DLL:

64-bit rundll32 with 64-bit DLL:

In this case, there is no need for a “proxy” process:

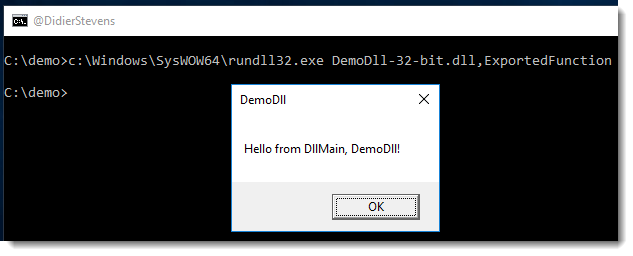

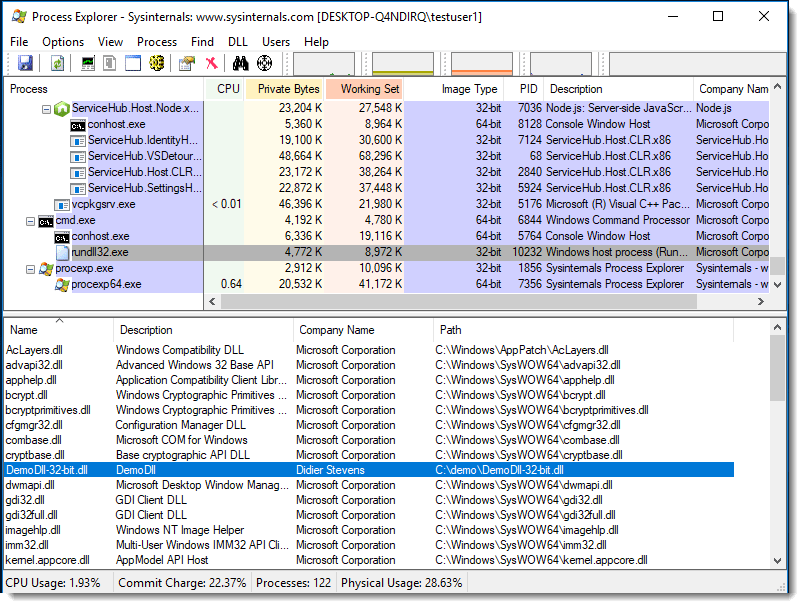

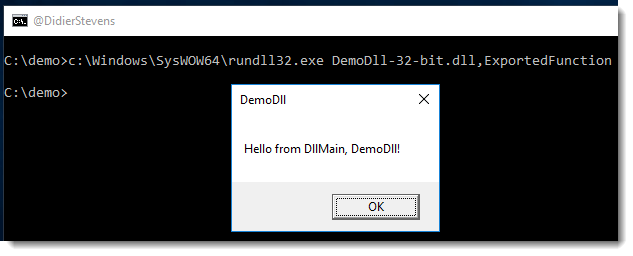

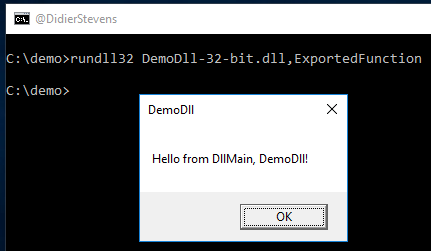

32-bit rundll32 with 32-bit DLL:

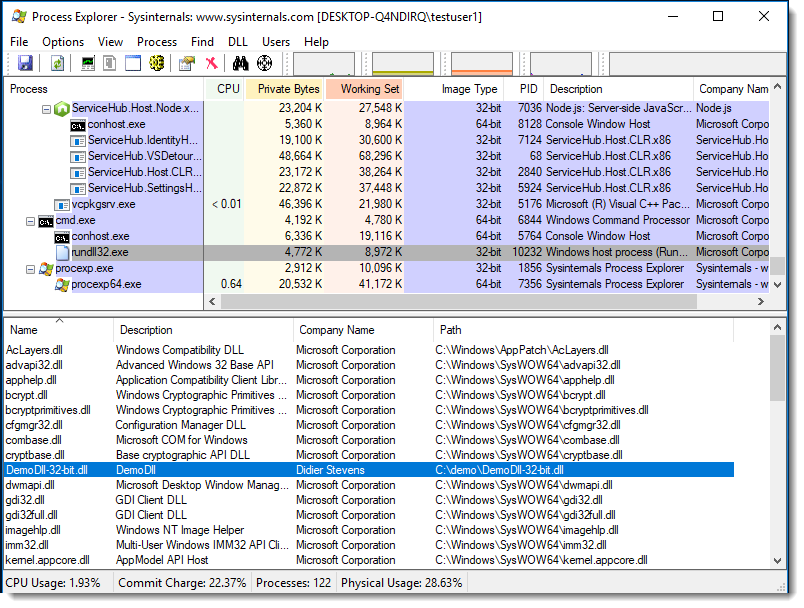

In this case too, there is no need for a “proxy” process:

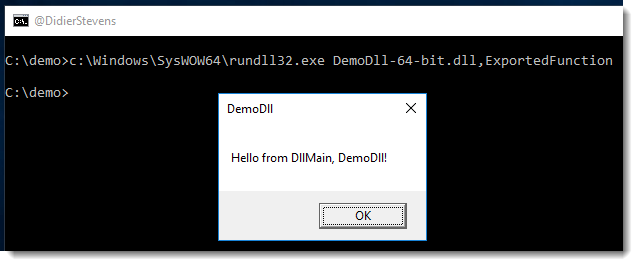

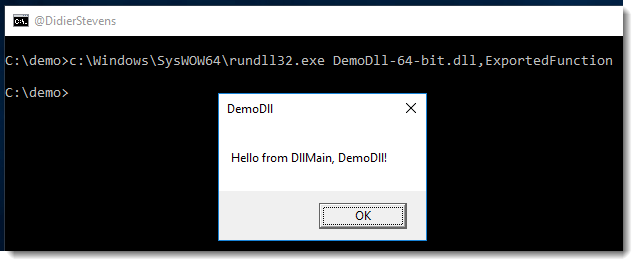

And finally, 32-bit rundll32 with 64-bit DLL:

Here we see that 32-bit rundll32 started 64-bit rundll32 to load the 64-bit DLL:

The following is another method: rundll32 shell32.dll,Control_RunDLL C:\Demo\DemoDLL-64-bit.dll

You have to provide an absolute path.

Finally, another method to load a DLL is with regsvr32. I’ve started to use regsvr32 long ago, when I developed ActiveX object: you used it to deploy ActiveX objects on machines.

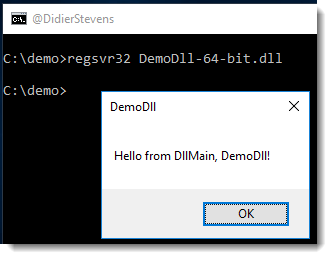

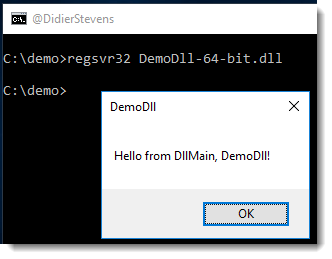

By default, regsvr32 will load the DLL and call exported function DllRegisterServer:

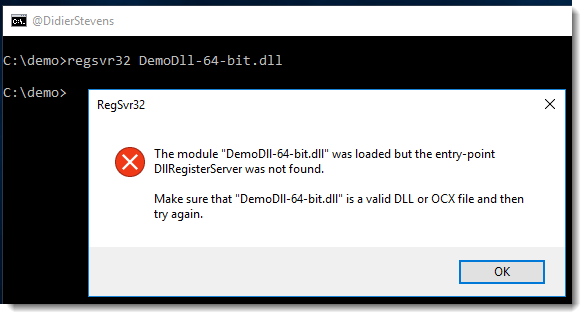

Since function DllRegisterServer is not exported by the demo DLL, we get an error:

But the DLL was loaded. If we export a function named DllRegisterServer in our DLL, it would get executed.

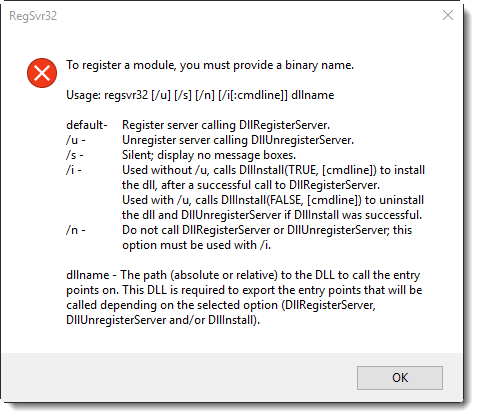

regsvr32 can be used to call other exported functions too (DllUnRegisterServer and DllInstall), as can be seen from the help dialog when you run regsvr32 without arguments:

DemoDll_V0_0_0_1.zip (https)
MD5: 51ED8255B71097269BFF9B5ADBFDC392
SHA256: 599BA297705B15580A297C3F47429225C38EA9FAA4A8DF27BCE49C918964AD30

Quickpost info

Thursday 7 September 2017

Running Windows Services on Linux with Mono

Filed under: Hacking — Didier Stevens @ 0:00

I knew you could run .NET executables on Linux with Mono, but I didn’t know you could run services too.

For example, this program to download and start a file works on Windows, Linux and OSX:

namespace Demo
    static class Program
        const string url = @"https://example.com";
        const string filename = @"example.txt";

        static void Main()
            string tempfilename = System.IO.Path.Combine(System.IO.Path.GetTempPath(), filename);
            (new System.Net.WebClient()).DownloadFile(url, tempfilename);

Services can be executed too on Mono, I discovered that when I launched service.exe:

As I just installed mono-devel, mono-service was not installed. For that, I need the complete Mono: sudo apt-get install mono-complete

And then I can run service.exe (which launches ping

Wednesday 6 September 2017

Update: re-search.py Version 0.0.9

Filed under: My Software,Update — Didier Stevens @ 21:37

A new option in this version: -x (–hex) to produce hexadecimal output.

re-search_V0_0_9.zip (https)
MD5: E9BC3AFF3FA3D6ED0F14EC4941955C2D
SHA256: 4AA92E513A478D02DD12110D3759FFCB2996A3E8A5D2D812124922C5023C3B50

Overview of Content Published In August

Filed under: Announcement — Didier Stevens @ 19:54

Here is an overview of content I published in August:

Blog posts:

YouTube videos:

Videoblog posts:

SANS ISC Diary entries:

NVISO Blog posts:

Compiling a Windows Service With Mono on Kali

Filed under: Hacking — Didier Stevens @ 0:00

The Windows service I used in my previous blog post can also be compiled on Kali (or other Linux distros or OSX) using Mono.

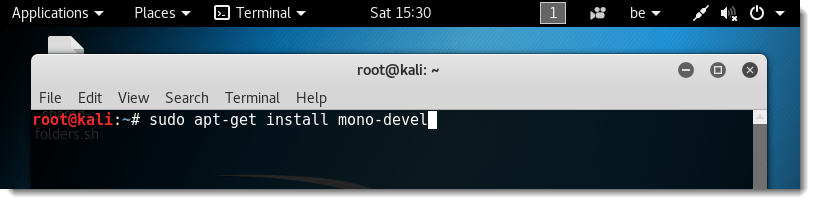

First I install Mono on Kali: sudo apt-get install mono-devel

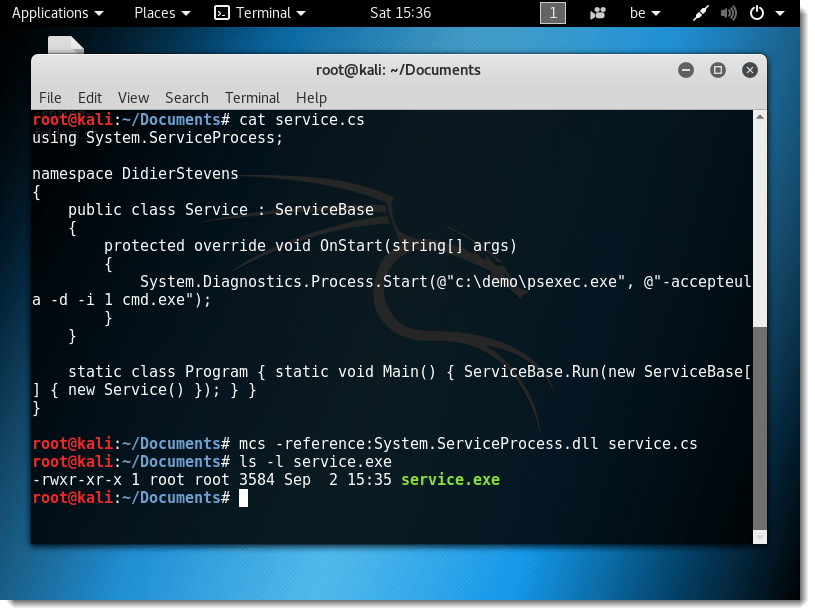

Then I can use Mono’s C# compiler mcs. Unlike .NET’s C# compiler csc.exe, mcs requires a reference to compile a Windows service:

mcs -reference:System.ServiceProcess.dll service.cs
