Monday 26 November 2018

Quickpost: Compiling with Build Tools for Visual Studio 2017

Filed under: Quickpost — Didier Stevens @ 0:00

Compiling C/C++ programs with Microsoft’s command-line compilers is possible, even if you don’t have Visual Studio installed. You can do this with the Build Tools for Visual Studio 2017 (a free download).

Go to https://visualstudio.microsoft.com/downloads/ and download the Build Tools:

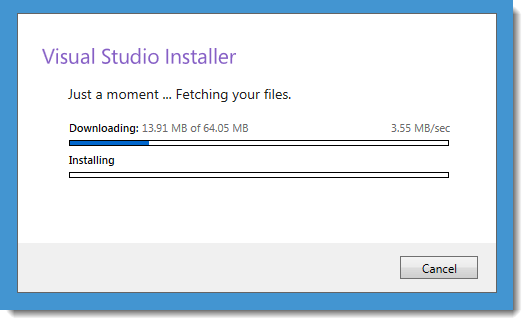

The downloaded file does not include the build tools, but it’s a stager that will download the necessary build tools. It requires .NET, you might get an error if the proper version is not installed:

Installing the correct .NET framework will fix this problem:

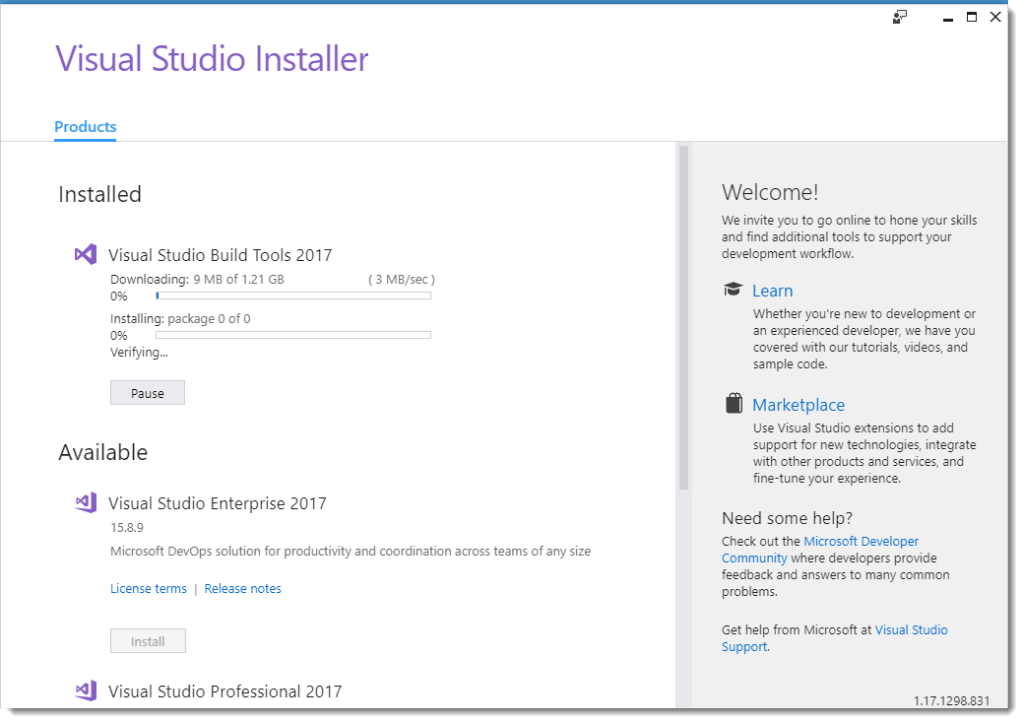

Once this download is completed, you can get to the actual installer where you choose the tools you want:

I selected the Visual C++ build tools, a download of about 1 GB:

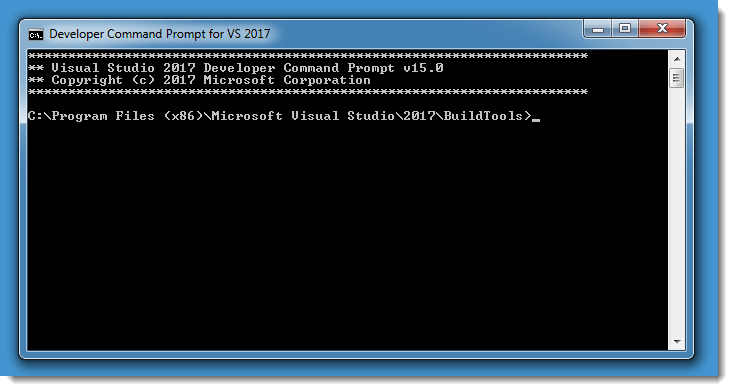

Once the build tools are installed, you can open a shell via the start menu:

The C/C++ compiler is invoked with command cl:

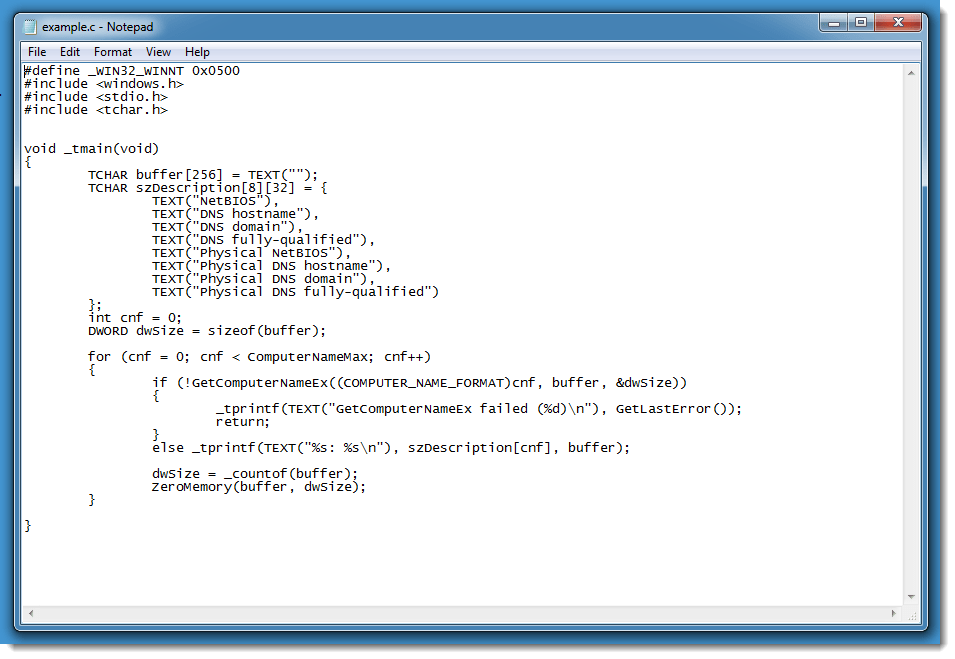

As an example, I’m compiling the following program:

Quickpost info

Comments (2)

Monday 19 November 2018

Quickpost: Compiling 32-bit Static ELF Files on Kali

Filed under: Quickpost — Didier Stevens @ 0:00

Here I compile EICARgen on Kali Linux to a 32-bit, statically linked Linux executable.

gcc’s option -m32 creates a 32-bit executable on 64-bit Linux.

If you get this error:

then one way to solve it is by installing libc6-dev-i386 (apt install libc6-dev-i386):

Then option -m32 can be used to create a 32-bit executable:

This executable will not run on 64-bit system that don’t have the libraries we just installed. A work-around is to statically link the ELF file with option -static:

Quickpost info

Comments (1)

Wednesday 14 November 2018

Video: Analyzing PowerPoint Maldocs with oledump Plugin plugin_ppt

Filed under: maldoc — Didier Stevens @ 0:00

I produced a video for my blog post “Analyzing PowerPoint Maldocs with oledump Plugin plugin_ppt“:

Comments (1)

Monday 12 November 2018

Update: cut-bytes.py Version 0.0.8

Filed under: My Software,Update — Didier Stevens @ 0:00

cut-bytes.py is a tool I use to select (cut) a sequence of bytes out of a file, using a cut-expression. This expression specifies the start of the sequence and the end of the sequence.

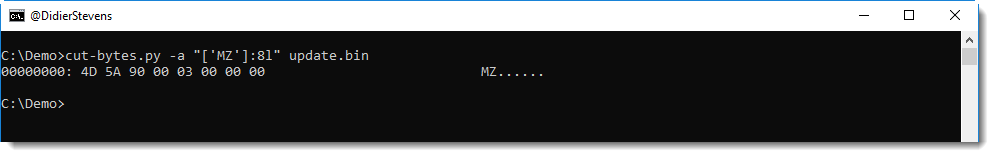

In this example, I use a cut-expression to find the first occurrence of MZ (i.e. [‘MZ’]) and select 8 bytes (8l) starting at the position of that occurrence (-a is ASCII dump):

I realized that with a few changes, I could add a binary grep feature to cut-bytes. Option -g activates this binary grep:

In stead of one occurrence (the first), with option -g, all occurrences are selected.

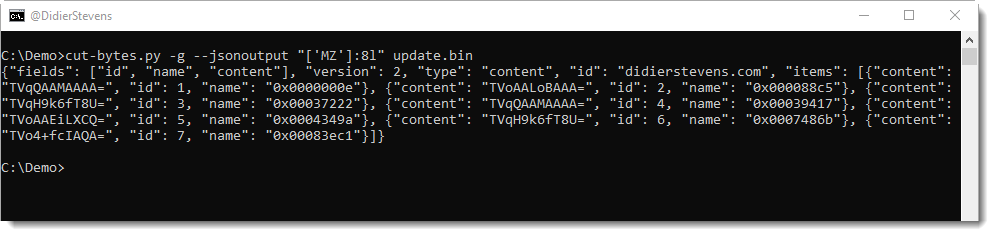

JSON output is now also available with option –jsonoutput:

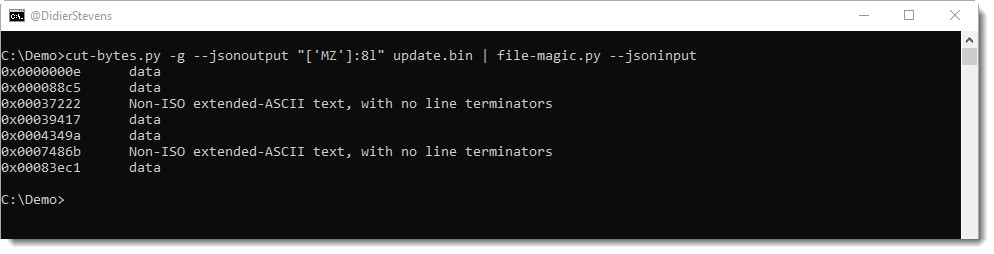

This JSON output contains all the selected byte sequences (BASE64 encoded and with metadata), and it can be piped into tools that accept this format, like file-magic.py:

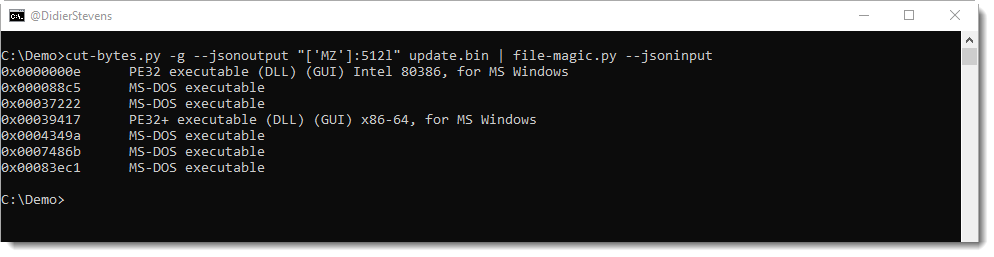

file-magic will then identify each byte sequence. As you can guess, I’m looking for PE files embedded in file update.bin. But the byte sequences are too short (8 bytes) for file-magic.py to properly identify file types. By increasing the length to 512 bytes, file-magic.py has enough data to locate 2 PE files (a 32-bit DLL and a 64-bit DLL) inside update.bin:
