Didier Stevens

Sunday 22 January 2023

Analyzing Malicious OneNote Documents

Filed under: My Software — Didier Stevens @ 18:09

About a week ago, I was asked if I had tools for OneNote files.

I don’t, and I had no time to take a closer look.

But last Thursday night, I had some time to take a look. I looked at this OneNote maldoc sample.

I opened the file in the binary editor I use often (010 Editor):

I expected to see some magic header, a special sequence of byte that would tell me which file type is used. I didn’t see that, but I noticed that the first 16 bytes look random. And they were the same for another sample. So this could be a GUID. GUIDs in Microsoft’s representation are a mix of little- and big-endian hexadecimal integers. That’s why 010 Editor has an entry for GUIDs in its inspector tab:

This is the GUID represented as a string: {7B5C52E4-D88C-4DA7-AEB1-5378D02996D3}

Looking this up with Google:

That’s great, Microsoft has a document [MS-ONESTORE] describing this file format.

Unfortunately, I did a quick search but didn’t find a pure Python module to read this file format. Maybe it exists, but I didn’t find it.

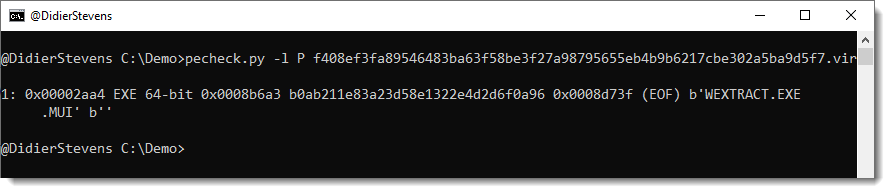

Next I tried my pecheck.py tool to locate the executable inside the onenote sample. That worked well:

At position 0x2aa4, here’s an embedded PE file. Taking a look with the binary editor:

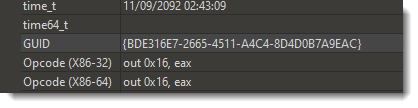

I see the MZ header, and 36 bytes in front of that, another random looking sequence of 16 bytes. Maybe another GUID:

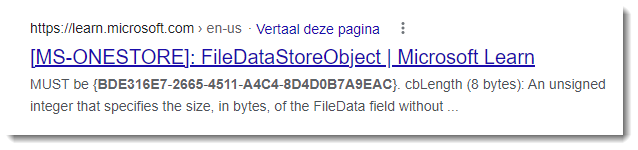

A bit of Google search:

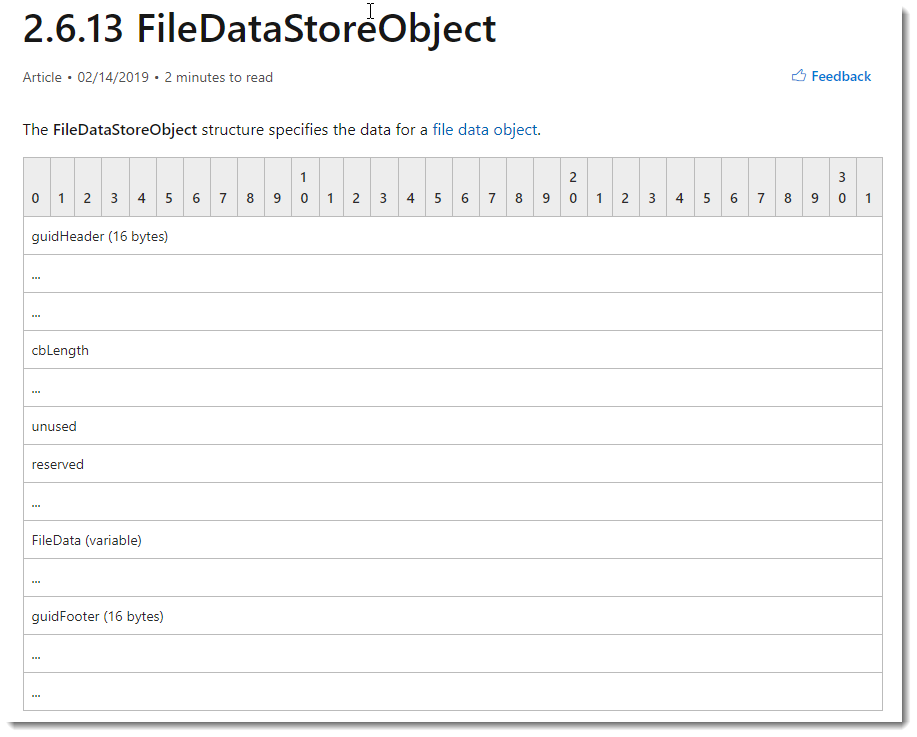

Turns out that this is a FileDataStoreObject structure.

So looking for this GUID in any file, one can find (and extract) embedded files. So that’s what I quickly coded using my Python template for binary files (there are some issues with this GUID-search method, I’ll address these in an upcoming blog post or video)

A new tool: onedump.py

Update: process-binary-file Version 0.0.8

Filed under: My Software,Update — Didier Stevens @ 9:27

New functions and classes have been added to process-binary-file.py.

python-templates_V0_0_9.zip (http)
MD5: 7C5E8602F225735015E9A431C5818762
SHA256: CAEEEBB1E402E5127A431446A01BBE607B22AA0EB1F6FA12B8E7703275BE6F15

New Tool: onedump.py

Filed under: maldoc,Malware,My Software — Didier Stevens @ 9:24

This is a new tool (based on my Python template for binary files) to analyze OneNote files.

This version is limited to handling embedded files (for the moment).

As I might still make significant changes to the user interface, I’ve put this tool in my GitHub beta repository.

Monday 2 January 2023

Overview of Content Published in 2022

Filed under: Announcement — Didier Stevens @ 0:00
Here is an overview of content I published in 2022:

Blog posts: YouTube videos: Videoblog posts: SANS ISC Diary entries: NVISO blog posts: NVISO Videos:

Sunday 1 January 2023

Overview of Content Published in December

Filed under: Announcement — Didier Stevens @ 9:44
Here is an overview of content I published in December:

Blog posts: SANS ISC Diary entries:
