Didier Stevens

Tuesday 28 November 2006

Mitigating Risk

Filed under: Nonsense — Didier Stevens @ 21:05

I came across an interesting picture while browsing my digital library.

As an IT security professional, you don’t often get a chance to say: “And in this picture, you see me mitigating risk”.

Mitigating Risk

Monday 27 November 2006

USBVirusScan v1.1.0

Filed under: My Software — Didier Stevens @ 21:37

The new version (1.1) of my USBVirusScan program has 2 new placeholders:

  • %v is the volume name of the inserted drive
  • %s is the volume serial number of the inserted drive

The volume serial number is assigned by the operating system when a hard disk is formatted. It is not the serial number assigned by the manufacturer. See function GetVolumeInformation for details.

The volume name and volume serial number allow me to script different actions for the different USB drives I plug into my system. For example, when I insert my USB drive with my TrueCrypt protected data on it, my script automatically launches the TrueCrypt program to mount the drive, I just have to type the pass-phrase. Or when I insert my MP3 player, the script opens the folder with queued-up podcasts.

And for all other drives, I start a virus scan.

Saturday 25 November 2006

EICARgen

Filed under: My Software — Didier Stevens @ 15:49

EICARgen is a trivial tool I developed to generate the EICAR Anti-Virus test file.

Sunday 19 November 2006

OllyStepNSearch v0.6.1

Filed under: My Software,Reverse Engineering — Didier Stevens @ 9:31

I’ve released a bugfix for my OllyDbg plugin OllyStepNSearch.

Thanks to Ngan Truong for finding and reporting bugs in the help function. My program worked with an uninitialized pointer, shame on me.

Update 3: Google and the Drive-by Download

Filed under: Malware,Update — Didier Stevens @ 9:18

A few days ago I Googled again for Vanderelst Chauffagiste (Google and the Drive-by Download), I noticed the Spamdexing “R” Us site has disappeared from the SERPs. But it still exists.

Wednesday 8 November 2006

FireOx

Filed under: Hacking — Didier Stevens @ 13:35

I’m at TechEd Barcelona this week.

We have locked-down Vista machines at our disposal (The Com Network) to access the Internet. Last year, I installed Firefox in My Documents on my roaming profile. Software Restriction Policies are defined on the domain we logon, so you cannot install software. But installing Firefox in My Documents is still possible.

Yesterday I noticed that Firefox was still available in My Documents, so I started using it right away. But not this morning, the admins must have tuned the policies, because firefox was not allowed to run.

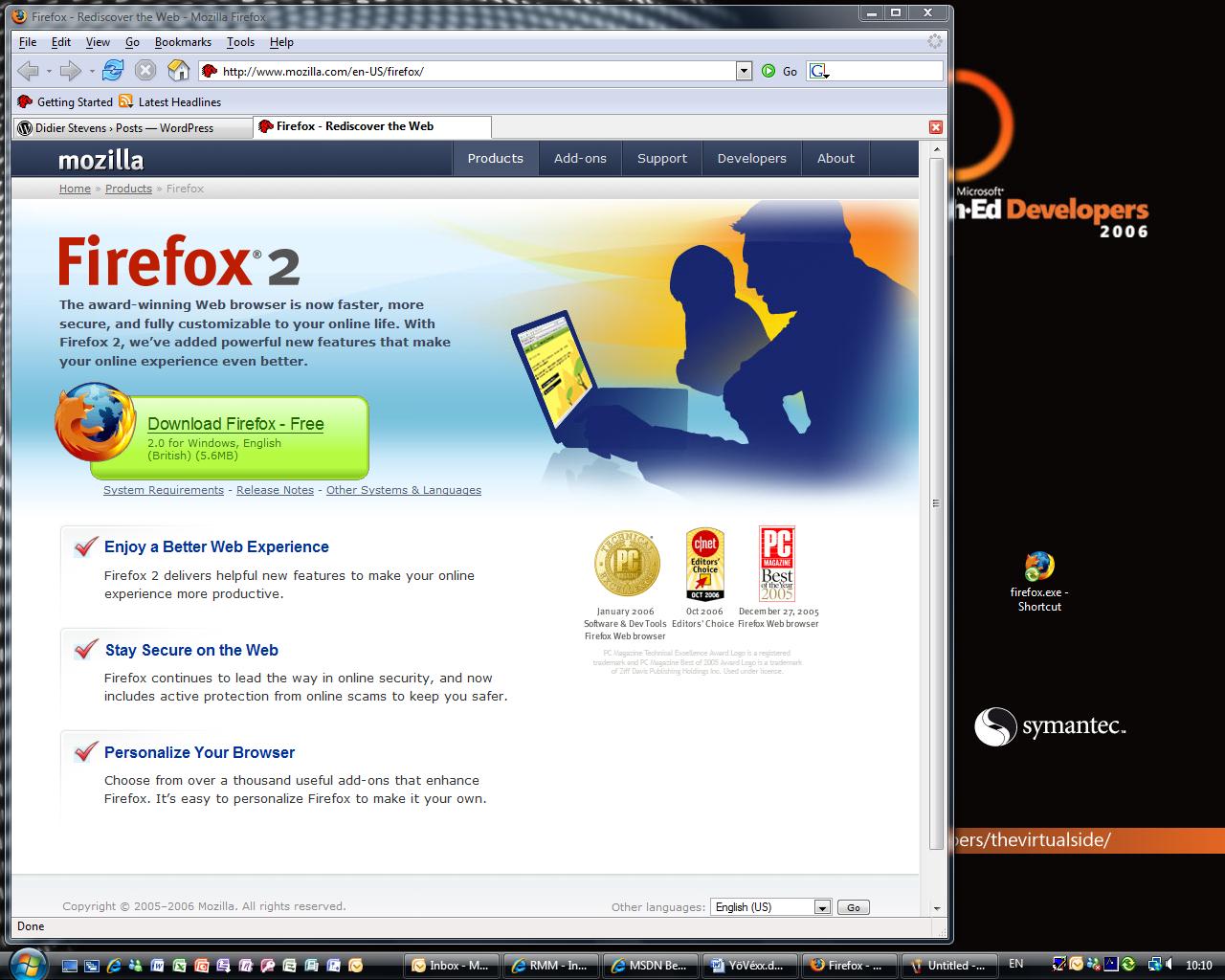

You can specify the software you want to restrict with a name (path) or a hash. I guessed, correctly, that they used a name, so now I’m browsing with FireOx.


Monday 6 November 2006

Challenger

Filed under: My Software,Reverse Engineering — Didier Stevens @ 6:58

Challenger is a small program I’ve used in reverse-engineering challenges (without success ;-)). It performs dictionary and brute-force attacks on the reverse-engineering challenge program.

The programs used in reverse-engineering challenges are usually console programs. You start the program, it asks for the password (standard output), you type the password (standard input), the program responds and ends.


Challenger automates this process: it runs the program against a list of passwords (dictionary) or it tries out all combinations (brute-force).

Challenger is also a console program taking command-line arguments.

  • /executable:program is the only required argument, you use it to specify the program to be challenged
  • /arguments:parameters is needed when the program to be challenged also takes command-line arguments. You cannot provide them with the /executable argument, you need to use the /arguments argument. This parameter is optional
  • /log:file allows you to write all results to a file. Results are always displayed on the console, with /log:log.txt, all results are also appended to file log.txt
  • /dictionary:file is used to perform a dictionary attack and specify the file containing the words to test as a password
  • /bruteforce:password is used to specify the starting password of a brute-force attack. By default, Challenger will execute a brute-force attack, starting with password a.
  • /characters:characters allows you to specify the characters used in a brute-force attack. By default, this is abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789
  • /search:keyword allows you to specify a keyword that will stop the attack. Once this keyword is detected in the output of the challenged program, Challenger will stop the attack. Searching for the keyword is case-sensitive. Challenger will go on indefinitely if no keyword is provided, it will only report each time the challenged program produces output it has not produced before. If you now what the challenged program outputs when you provide the correct password, you use this search argument to look for it. If you don’t know it, you just let Challenger run and review its output
  • /timeout:milliseconds allows you to specify the timeout for the challenged program. By default, this is 100 ms: if the challenged program runs longer than 100 ms, Challenger will stop it.
  • /heartrate:count allows you to define how often Challenger writes status info to the log. By default, it’s every 1000 passwords tested

Here is an example where I use my program on F-secure’s Khallenge level 1 program with a tiny wordlist from Openwall. Since I don’t know the output produced by the program when a correct password is entered, I don’t use the search argument: challenger /executable:level1.exe /dictionary:lower.lst /log:log.txt

Here is the result:

Start     > 2/11/2006 21:49:45
Start     > Challenger v1.0.0.0 (https://DidierStevens.com)

Config    > dictionary

Config    > file: lower.lst

Config    > executable: level1.exe

Config    > arguments:

Config    > timeout: 100

Config    > heartbeat: 1000

Config    > search: not enabled

Config    > log: log.txt

New output> a -> ASSEMBLY'06 REVERSE ENGINEERING CHALLENGE
  *** LEVEL 1 ***  Challenge Copyright (c) 2006 F-Secure Corporation
For more information, please see http://www.f-secure.com/weblog/asm.htm
Enter the password:
Try another one.
Heartbeat > 2/11/2006 21:49:58 counter: 1000 password: anonymity

Heartbeat > 2/11/2006 21:50:11 counter: 2000 password: barge

Heartbeat > 2/11/2006 21:50:23 counter: 3000 password: brass

Heartbeat > 2/11/2006 21:50:34 counter: 4000 password: cement

Heartbeat > 2/11/2006 21:50:45 counter: 5000 password: compendia

Heartbeat > 2/11/2006 21:50:57 counter: 6000 password: cuisine

Heartbeat > 2/11/2006 21:51:10 counter: 7000 password: disavow

Heartbeat > 2/11/2006 21:51:21 counter: 8000 password: emergency

Heartbeat > 2/11/2006 21:51:34 counter: 9000 password: feeble

Heartbeat > 2/11/2006 21:51:45 counter: 10000 password: g

Heartbeat > 2/11/2006 21:51:58 counter: 11000 password: handbarrow

Heartbeat > 2/11/2006 21:52:11 counter: 12000 password: identical

Heartbeat > 2/11/2006 21:52:23 counter: 13000 password: ion

Heartbeat > 2/11/2006 21:52:35 counter: 14000 password: lev

Heartbeat > 2/11/2006 21:52:47 counter: 15000 password: meatball

Heartbeat > 2/11/2006 21:53:00 counter: 16000 password: naivete

New output> obvious -> ASSEMBLY'06 REVERSE ENGINEERING CHALLENGE
  *** LEVEL 1 ***  Challenge Copyright (c) 2006 F-Secure Corporation
For more information, please see http://www.f-secure.com/weblog/asm.htm
Enter the password:
Yup, thats it!
To continue, send an email to:   level1-solution_was_obvious@khallenge.com
Heartbeat > 2/11/2006 21:53:13 counter: 17000 password: orthograph

Heartbeat > 2/11/2006 21:53:26 counter: 18000 password: pestle

Heartbeat > 2/11/2006 21:53:39 counter: 19000 password: presume

Heartbeat > 2/11/2006 21:53:51 counter: 20000 password: recount

Heartbeat > 2/11/2006 21:54:04 counter: 21000 password: sandy

Heartbeat > 2/11/2006 21:54:16 counter: 22000 password: sis

Heartbeat > 2/11/2006 21:54:29 counter: 23000 password: stomp

Heartbeat > 2/11/2006 21:54:42 counter: 24000 password: tenor

Heartbeat > 2/11/2006 21:54:54 counter: 25000 password: tunisia

Heartbeat > 2/11/2006 21:55:07 counter: 26000 password: venerate

Heartbeat > 2/11/2006 21:55:19 counter: 27000 password: withhold

For the first password (a), the challenge program outputs “Try another one.”. The challenge program outputs this for every password in the list, until the password “obvious” is tested. When obvious is entered as the password, the output of the challenge program is “Yup, thats it!”, allong with the e-mail address. Since no /search argument was provided, the Challenger program continues until the wordlist is exhausted.

The “New output>” line lists the exact output produced by the tested program, except that all newlines are replaced by a space character to make it fit on one line (for clarity, I’ve added the newlines back in this example).


Had I known that the level 1 program outputed “Yup, thats it!” when the correct password is entered, I could have issued this command: challenger /executable:level1.exe /dictionary:lower.lst /log:log.txt /search:Yup

And the program would stop once the correct password was found:

Found > counter: 16663 password: obvious ASSEMBLY’06 REVERSE …

It’s also possible to start a brute-force attack, like this: challenger /executable:level1.exe

This will start with password ‘a’ and try all alphanumeric combinations.

During the reversing of the level 3 challenge of F-Secure’s Khallenge, I discovered that only characters 2, 4, 6 and 8 were used in the password. So I used my Challenger program to try all combinations, while I continued reversing:

challenger /executable:level3.exe /bruteforce:2 /characters:2468 /log:log.txt

Output:

Start     > 2/11/2006 22:09:25

Start     > Challenger v1.0.0.0 (https://DidierStevens.com)

Config    > brute force

Config    > start: 2

Config    > characters: 2468

Config    > executable: level3.exe

Config    > arguments:

Config    > timeout: 100

Config    > heartbeat: 1000

Config    > search: not enabled

Config    > log: log2.txt

New output> 2 -> ASSEMBLY'06 REVERSE ENGINEERING CHALLENGE
  *** LEVEL 3 ***  Challenge
Copyright (c) 2006 F-Secure Corporation
For more information, please see http://www.f-secure.com/weblog/asm.htm
Enter password:
Nope.

Heartbeat > 2/11/2006 22:09:40 counter: 1000 password: 66428

Heartbeat > 2/11/2006 22:09:53 counter: 2000 password: 264868

Heartbeat > 2/11/2006 22:10:06 counter: 3000 password: 464628

Heartbeat > 2/11/2006 22:10:20 counter: 4000 password: 664268

Heartbeat > 2/11/2006 22:10:34 counter: 5000 password: 862828

Heartbeat > 2/11/2006 22:10:48 counter: 6000 password: 2262468

Heartbeat > 2/11/2006 22:11:02 counter: 7000 password: 2462228
...

But I found the correct password through reversing before my Challenger program found it with brute-force: the password was so long that my program would take too long…

Challenger is written in C# with Microsoft Visual C# 2005 Express Edition.

Download:

Challenger_V1_0_0.zip (https)

MD5: FC71CAA3F99CB6EE9094098D60B7E4C3
