Quickpost: Compiling EXEs and Resources with MinGW on Kali

Filed under: Quickpost — Didier Stevens @ 0:00

To compile a Windows executable with version information and an icon on Kali, we use MinGW again.

The version information and icon (demo.ico) we want to use are defined in a resource file (demo.rc):

#include "winver.h"


#define IDI_ICON1                       101

/////////////////////////////////////////////////////////////////////////////
//
// Version
//

#define VER_FILEVERSION             0,0,0,1
#define VER_FILEVERSION_STR         "0.0.0.1\0"

#define VER_PRODUCTVERSION          0,0,0,1
#define VER_PRODUCTVERSION_STR      "0.0.0.1\0"

#ifndef DEBUG
#define VER_DEBUG                   0
#else
#define VER_DEBUG                   VS_FF_DEBUG
#endif

VS_VERSION_INFO VERSIONINFO
FILEVERSION     VER_FILEVERSION
PRODUCTVERSION  VER_PRODUCTVERSION
FILEFLAGSMASK   VS_FFI_FILEFLAGSMASK
FILEFLAGS       VER_DEBUG
FILEOS          VOS__WINDOWS32
FILETYPE        VFT_APP
FILESUBTYPE     VFT2_UNKNOWN
BEGIN
    BLOCK "StringFileInfo"
    BEGIN
        BLOCK "040904E4"
        BEGIN
            VALUE "CompanyName", "example.com"
            VALUE "FileDescription", "demo"
            VALUE "FileVersion", VER_FILEVERSION_STR
            VALUE "InternalName", "demo.exe"
            VALUE "LegalCopyright", "Public domain"
            VALUE "OriginalFilename", "demo.exe"
            VALUE "ProductName", "demo"
            VALUE "ProductVersion", VER_PRODUCTVERSION_STR
        END
    END
    BLOCK "VarFileInfo"
    BEGIN
        VALUE "Translation", 0x409, 1252
    END
END


/////////////////////////////////////////////////////////////////////////////
//
// Icon
//

// Icon with lowest ID value placed first to ensure application icon
// remains consistent on all systems.
IDI_ICON1               ICON                    "demo.ico"
/////////////////////////////////////////////////////////////////////////////

More info on the VERSIONINFO resource can be found here.

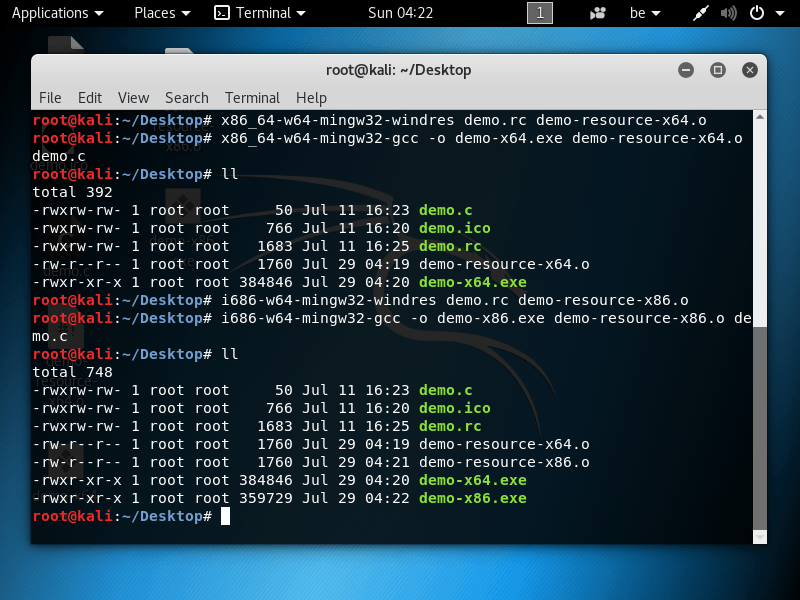

We use the resource compiler windres, and then the gcc compiler.

Compile for 64-bit:

x86_64-w64-mingw32-windres demo.rc demo-resource-x64.o
x86_64-w64-mingw32-gcc -o demo-x64.exe demo-resource-x64.o demo.c

Compile for 32-bit:

i686-w64-mingw32-windres demo.rc demo-resource-x86.o
i686-w64-mingw32-gcc -o demo-x86.exe demo-resource-x86.o demo.c



DemoResource_V_0_0_0_1.zip (https)
MD5: 9104DDC70264A9C2397258F292CC8FE4
SHA256: 722B3B52BAE6C675852A4AC728C08DBEEF4EC9C96F81229EF36E30FB54DC49DE
