Howto: Add a Digital Signature to Executables

Filed under: Encryption — Didier Stevens @ 10:56

Signtool.exe is the default Windows development tool to add a digital signature (Authenticode) to Windows executables (PE files). This howto shows you how to use signtool. You’ll need to create your own certificate and key (or buy one) to sign code.

To obtain signtool, download the platform SDK or the .NET SDK.

I use signtool in my makefile with command line options to automatically sign compiled code, but in this howto, I’ll show the interactive use.

First we will install the certificate with key we’ll use to sign code. Double-click the file and let the wizard do its work with the default option:



Because the wizard will also install the root CA certificate found in the PKCS12 file, it will ask you if you trust it.


It is not necessary to install this root CA certificate for code signing purposes, but if you don’t, signtool will not include the root CA certificate in the certificate chain. And you also need to install this root CA certificate if you want to automatically trust all certificates issued by this root CA (or its subordinate CAs).

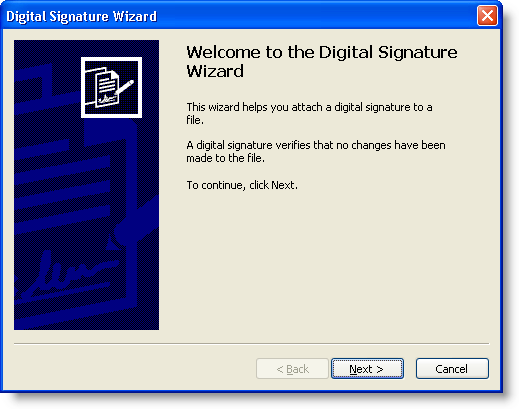

Now start signtool from a command-line like this: signtool signwizard.

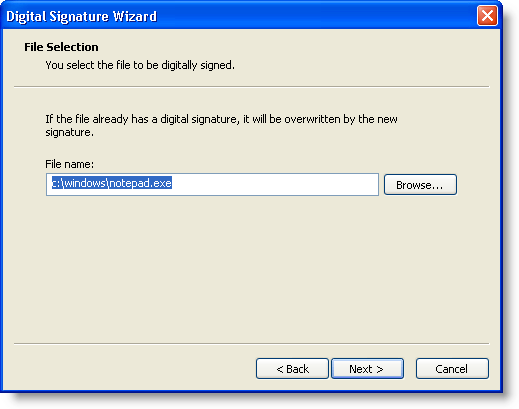

For the purposes of this howto, we’ll sign notepad.exe. When you sign an executable that is already signed, the existing signature is overwritten. Actually, notepad is not signed by Microsoft with an embedded signature, but using a security catalog.


We’ll use the default options presented by the wizard (except for the timestamp):

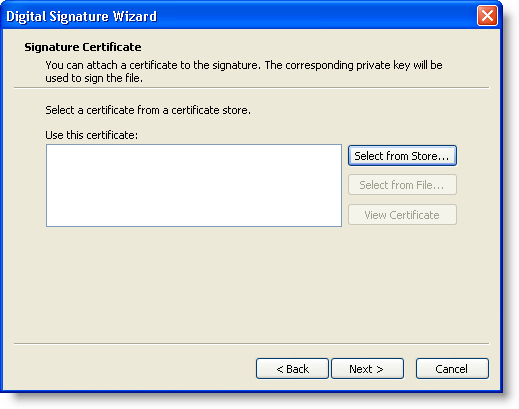

Select the certificate with key we installed: use Select from Store…




By default, the signature doesn’t include a timestamp signed by an external authority (a counter-signature). It’s easy to add one, for example using Verisign’s timestamp service: http://timestamp.verisign.com/scripts/timstamp.dll (of course, using this option requires Internet access).

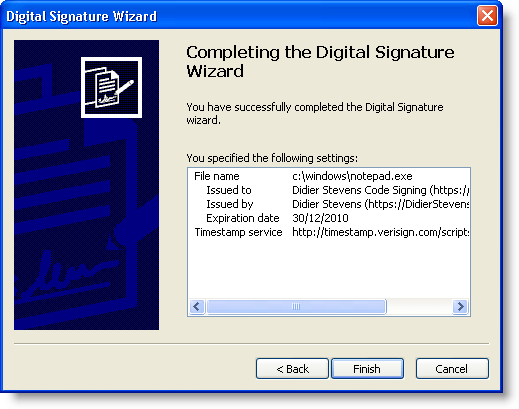

Finally, click finish for the wizard to do its work:

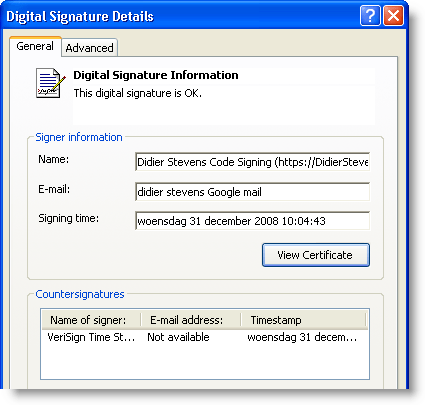

From now on, notepad.exe’s properties displays a Digital Signatures tab:




This certificate is OK because we installed the root CA certificate in our certificate store. But if you check this signature on another machine or with another account (which doesn’t trust our root CA), we’ll get a warning that although the signature is valid, we don’t trust the root CA:



If you didn’t make a backup of notepad.exe and want to remove the signature, use my digital signature tool disitool.
