Compiling a service DLL (a Windows DLL implementing a service to be executed inside a shared svchost.exe process) with MinGW on Kali, is almost the same as compiling a DLL.

A service DLL implements a service and must export a ServiceMain function. To prevent name mangling of the exported function, the ServiceMain definition needs to be ‘extern “C”‘:

extern “C” VOID WINAPI ServiceMain(DWORD dwArgc, LPCWSTR* lpszArgv)

And we need a DEF file:

LIBRARY SvcHostDemo
EXPORTS
	ServiceMain

This DEF file can be passed as argument to the MinGW compiler.

To create a 32-bit DLL:

i686-w64-mingw32-gcc -shared -municode -o SvcHostDemo.dll SvcHostDemo.def SvcHostDemo.cpp

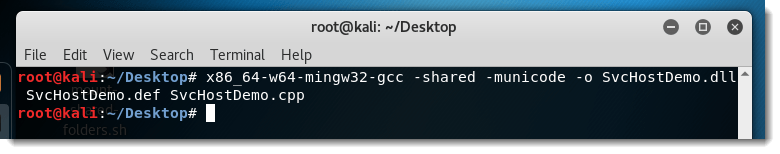

To create a 64-bit DLL:

x86_64-w64-mingw32-gcc -shared -municode -o SvcHostDemo.dll SvcHostDemo.def SvcHostDemo.cpp

Option -municode is needed because I use TCHARs and want to compile a UNICODE executable.

Here is the code of my service template:

#define _UNICODE

#include <windows.h>
#include <stdio.h>
#include <tchar.h>
#include <strsafe.h>

SERVICE_STATUS_HANDLE g_serviceStatusHandle = nullptr;
HANDLE g_hSvcStopEvent = NULL;

SERVICE_STATUS g_serviceStatus = {SERVICE_WIN32_SHARE_PROCESS, SERVICE_START_PENDING, SERVICE_ACCEPT_STOP | SERVICE_ACCEPT_SHUTDOWN | SERVICE_ACCEPT_PAUSE_CONTINUE};

BOOL WINAPI DllMain(HMODULE hModule, DWORD dwReason, LPVOID lpReserved)
{
	OutputDebugString(L"DllMain");
	switch (dwReason)
    {
	    case DLL_PROCESS_ATTACH:
					OutputDebugString(L"DLL_PROCESS_ATTACH");
	        break;
	    case DLL_THREAD_ATTACH:
					OutputDebugString(L"DLL_THREAD_ATTACH");
	        break;
	    case DLL_THREAD_DETACH:
					OutputDebugString(L"DLL_THREAD_DETACH");
	        break;
	    case DLL_PROCESS_DETACH:
					OutputDebugString(L"DLL_PROCESS_DETACH");
	        break;
    }
    return TRUE;
}

DWORD WINAPI HandlerEx(DWORD dwControl, DWORD dwEventType, LPVOID lpEventData, LPVOID lpContext)
{
	switch (dwControl)
	{
		case SERVICE_CONTROL_STOP:
			OutputDebugString(L"HandlerEx SERVICE_CONTROL_STOP");
			g_serviceStatus.dwCurrentState = SERVICE_STOPPED;
			SetEvent(g_hSvcStopEvent);
			break;
		case SERVICE_CONTROL_SHUTDOWN:
			OutputDebugString(L"HandlerEx SERVICE_CONTROL_SHUTDOWN");
			g_serviceStatus.dwCurrentState = SERVICE_STOPPED;
			SetEvent(g_hSvcStopEvent);
			break;
		case SERVICE_CONTROL_PAUSE:
			OutputDebugString(L"HandlerEx SERVICE_CONTROL_PAUSE");
			g_serviceStatus.dwCurrentState = SERVICE_PAUSED;
			break;
		case SERVICE_CONTROL_CONTINUE:
			OutputDebugString(L"HandlerEx SERVICE_CONTROL_CONTINUE");
			g_serviceStatus.dwCurrentState = SERVICE_RUNNING;
			break;
		case SERVICE_CONTROL_INTERROGATE:
			OutputDebugString(L"HandlerEx SERVICE_CONTROL_INTERROGATE");
			break;
		default:
			OutputDebugString(L"HandlerEx default");
			break;
	}

	SetServiceStatus(g_serviceStatusHandle, &g_serviceStatus);

	return NO_ERROR;
}

DWORD WINAPI Worker(LPVOID lpParam)
{
	while (TRUE)
	{
		if (g_serviceStatus.dwCurrentState == SERVICE_RUNNING)
			OutputDebugString(L"Working ...");
		Sleep(1000);
	}
}

extern "C" VOID WINAPI ServiceMain(DWORD dwArgc, LPCWSTR* lpszArgv)
{
	TCHAR szOutput[256];
	DWORD dwIter;

	OutputDebugString(L"Begin ServiceMain");
	StringCchPrintf(szOutput, 256, L"dwArgc = %d", dwArgc);
	OutputDebugString(szOutput);
	for (dwIter=0; dwIter<dwArgc; dwIter++)
		OutputDebugString(lpszArgv[dwIter]);

	if (dwArgc > 0)
		g_serviceStatusHandle = RegisterServiceCtrlHandlerExW(lpszArgv[0], HandlerEx, nullptr);
	else
		g_serviceStatusHandle = RegisterServiceCtrlHandlerExW(L"SvcHostDemo", HandlerEx, nullptr);
	if (!g_serviceStatusHandle)
	{
		OutputDebugString(L"Error 1 ServiceMain");
		return;
	}

	g_hSvcStopEvent = CreateEvent(NULL, TRUE, FALSE, NULL);

	if (g_hSvcStopEvent == NULL)
	{
		OutputDebugString(L"Error 2 ServiceMain");
		return;
	}

	g_serviceStatus.dwCurrentState = SERVICE_RUNNING;

	SetServiceStatus(g_serviceStatusHandle, &g_serviceStatus);

	OutputDebugString(L"Starting Worker ServiceMain");

	if (NULL == CreateThread(NULL, 0, Worker, NULL, 0, NULL))
	{
		OutputDebugString(L"Error 3 ServiceMain");
		return;
	}

	OutputDebugString(L"Waiting ServiceMain");

	WaitForSingleObject(g_hSvcStopEvent, INFINITE);

	OutputDebugString(L"End ServiceMain");
}
